High-performance, light-weighted day & night panoramic sight
The COAPS-L stabilized panoramic sight provides day & night target detection, acquisition and tracking capabilities using high- end sensors and advanced AI/ML video-analytics. Lightweight, compact, modular and cost-effective, the COAPS-L can be integrated with

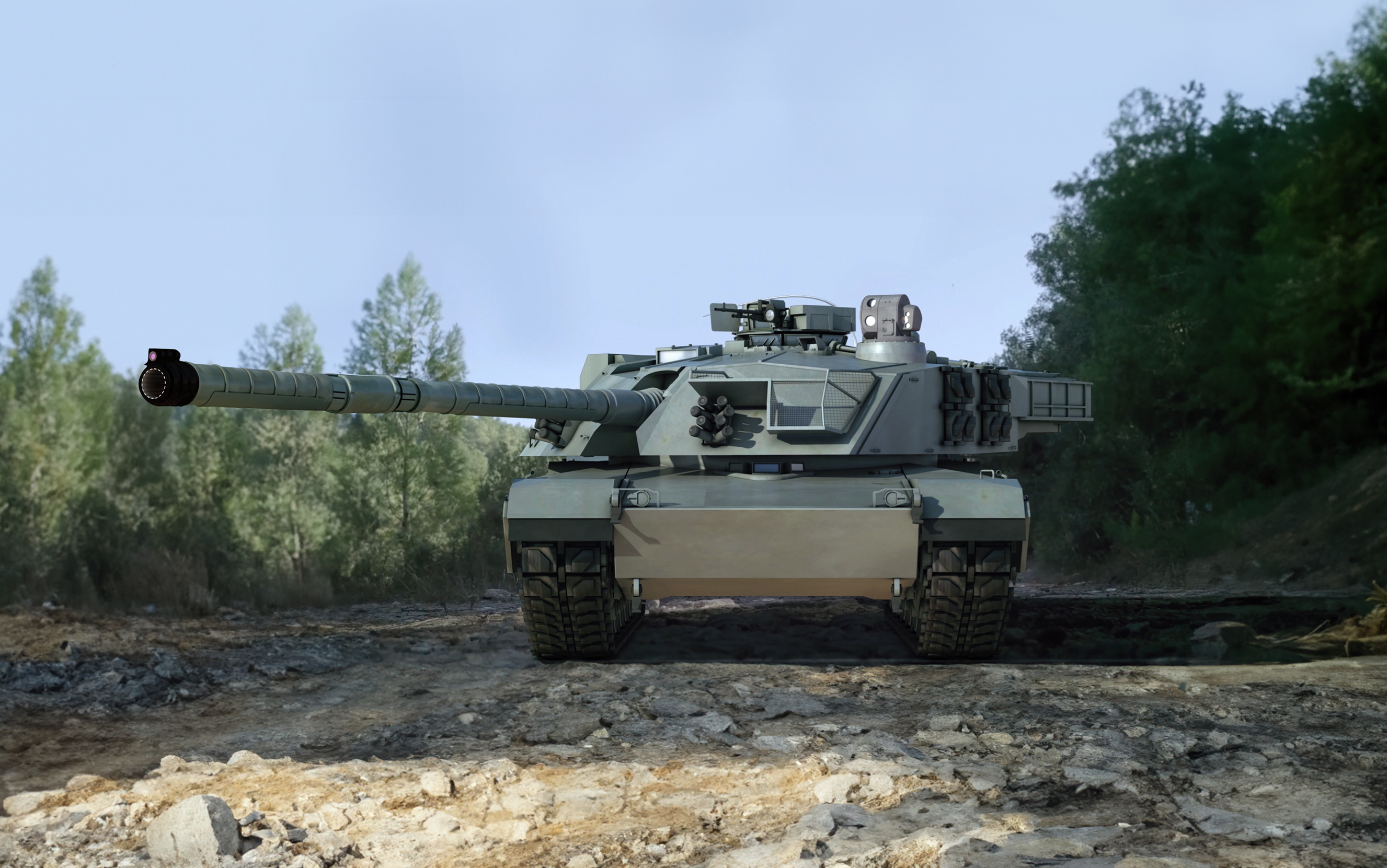

MBTs, AFVs, armored cars, light tactical vehicles and un-manned ground vehicles (UGVs).
Modular configuration for best-in-class functionality
COAPS-L features advanced sensors and image processing capabilities in a unique add-on system. This modular solution is designed to provide long-range day and night target acquisition in stationary or on-the-move operations. The solution’s open architecture supports
integration with command and control systems.
Uniquely configured with compact dimensions, the system features a small mechanical interface to the platform and minimal volume inside the turret or vehicle.
Key Features
Key Benefits
- LOS freedom - AZ: 360º xN / EL: -20º - 80º
- Stabilization accuracy - Stationary: ≤ 0.015 mRad (1∂) / Mobile (30 kmh): ≤ 0.07 mRad (1∂)
- Positioning/slaving accuracy - ≤ 0.200 mRad(1∂)
- Weight - 40kg
- Wavelength - 1.534μm
- Range (2.3x2.3 NATO target) - 50 to 7000m
- Max range 20000m
- Range accuracy: ±2m (1∂) up to 2km range / ±3m (1∂) more than 2km
- Safety class: Class I
