Helmet Mounted Display System Next Generation, Color Day & Night HMS

Built on an exceptional legacy and operational success, the new JHMCS II offers uniquely advanced capabilities in an affordable package
Specifically designed for today’s areas of operation and tomorrow’s operational demands, the JHMCS II system delivers color as well as day and night capabilities at the lowest cost.

Our HMD systems are a daily companion for thousands of fighter pilots worldwide.

From the same house, with 20 years of operational experience, comes JHMCS II, operationally ready for day and night conditions, and equipped with advanced color and video display capabilities.

JHMCS II is light weight, with minimal installation footprint, delivering new levels of logistics and operational savings.

Next Generation JHMCS II

Improved helmet comfort and CG

20 degree circular FOV

Unique color display

CanaryTM

pilot health monitoring capable of identifying and warning prior to Hypoxia and GLOC events or call for automatic aircraft recovery in case of pilot’s loss of consciousness

NVCD and NVG

NVCD (night symbology) and click-on Night Vision Goggles (NVG) utilizing the standard NVG mounting bracket

Safe, proven visor projection

Highest accuracy

hybrid optical/inertial tracker with unlimited motion box and highest redundancy

Multi-sensor video presentation

VTV

Variable Transmittance Visor is an Elbit’s proprietary photochromic coating which dynamically attenuates the intensity of the light passing through the visor, enabling pilots to perform both day and night missions using a single visor, thereby improving user experience and increasing mission effectiveness

NVCD and NVG

NVCD (night symbology) and click-on Night Vision Goggles (NVG) utilizing the standard NVG mounting bracket

Improved helmet comfort and CG

Safe, proven visor projection

20 degree circular FOV

Highest accuracy

hybrid optical/inertial tracker with unlimited motion box and highest redundancy

Unique color display

Multi-sensor video presentation

CanaryTM

pilot health monitoring capable of identifying and warning prior to Hypoxia and GLOC events or call for automatic aircraft recovery in case of pilot’s loss of consciousness

VTV

Seamless Technology-Leap

Virtual Training Display support

Minimal and affordable GSE

Flexible, software-customized symbology and logic

Light-weight

Light-weight with minimal installation or aircraft down time required

Low voltage and low power

consumption flat panel display

Flexible, software-customized symbology and logic

Virtual Training Display support

Light-weight

Light-weight with minimal installation or aircraft down time required

Minimal and affordable GSE

Low voltage and low power

consumption flat panel display

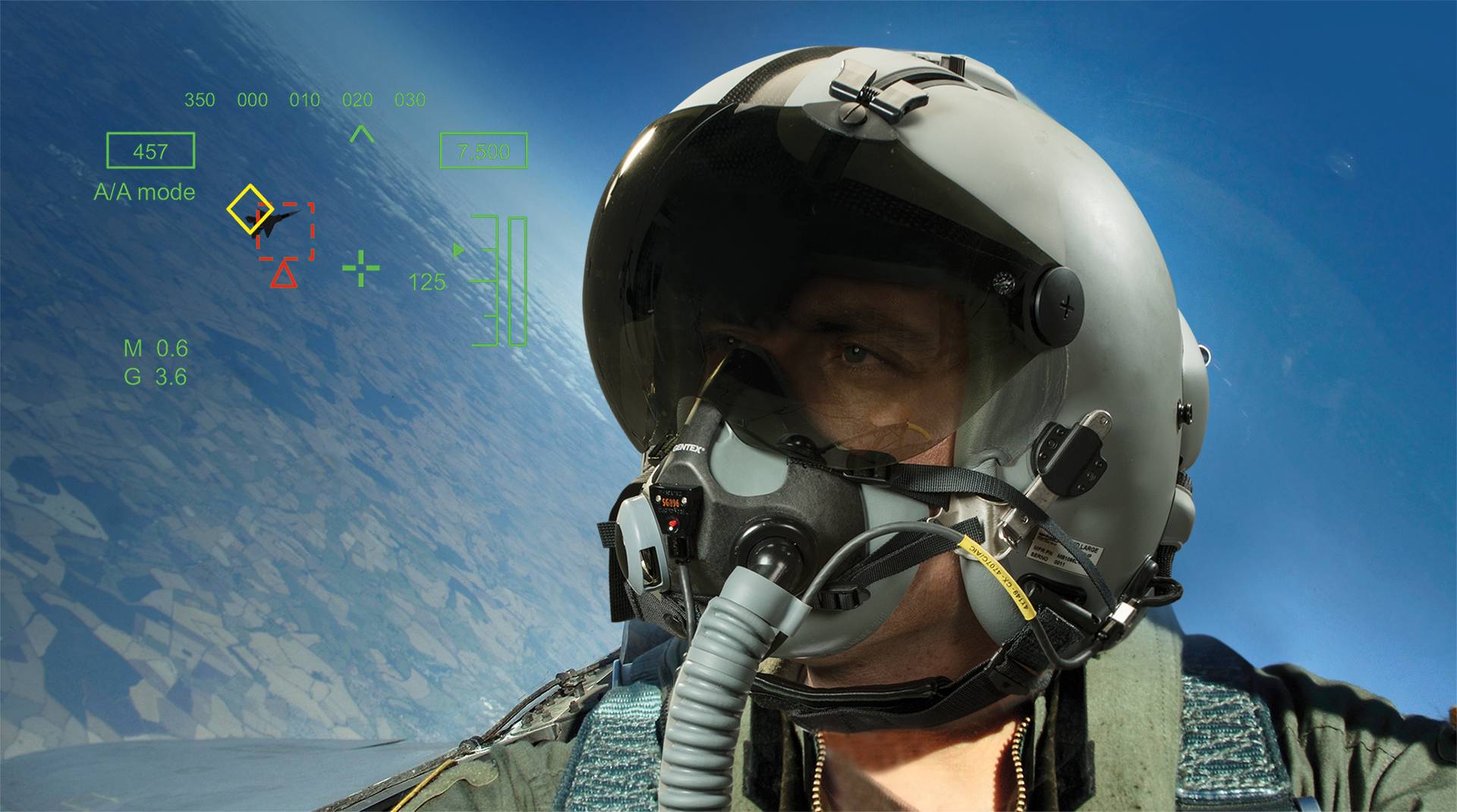

Keep your head out, we will do the rest

In combat flights, pilots must maintain visibility of what is happening outside the cockpit, while also keeping their eyes on the critical information displayed inside the cockpit. JHMCS-II enables pilots to do both at once, by displaying critical data from inside the cockpit directly in front of the pilot, intuitively and in plain sight.

SVS (Synthetic Vision System)

The SVS grid is accurately presented on top of the terrain, providing the pilot with improved situational awareness during low altitude flights, in low visibility and harsh weather conditions.

Display of blue force DL (DataLink)

Visual indication of Blue Force formation is displayed, including all formation members, their position and a Target Locator Line (TLL) for the entire formation, or a specific member.

Weaponry status

Based on predefined logical rules, critical information is delivered in a way that attracts the pilot’s attention. For example, when a pilot switches to Dog Fight mode, a red ARM message will blink until the weapon master is switched to ARM.

Off-boresight target engagement

By slaving the missile to the pilot’s 360° line-of-sight, the missile’s engagement envelope is expanded beyond the field of view of the HUD, FCR and IRST.

Display of targeting pod video

The Laser Designation Pod (LDP) video can be displayed, enabling the pilot to verify the target, while maintaining the flight path.

Flight data

All relevant flight and mission data is displayed in either a numeric, alphabetic or graphic manner. Some information is continuously displayed (such as baro altitude), while other information is presented in specific mission modes (A/A, A/G, NAV, Land, etc.).

Display of threats

A/A and A/G threats are displayed in real time, supporting the pilot’s decision-making process and initiating self-defense activities and counter attacks.

VTV (Variable Transmissible Visor)

The visor’s unique, passive photochromic coating supports both day and night missions, as it is completely transparent in low light conditions and darkens in bright light to attenuate the light intensity passing through it.

Display of DL (DataLink) A/A targets

Data Link information is intuitively displayed in a clear, visual manner and is available to the pilot at all times.

HMD target acquisition

The Laser Designation Pod (LDP) can be slaved to the pilot’s line-of-sight for a simple, instant switch between A/G targets.

Easy BDA (Bomb Damage Assessment)

Post-weapon release, JHMCS-II continuously directs the pilot to the target for easy Bomb Damage Assessment (BDA). Time count-down can be added to the display.
