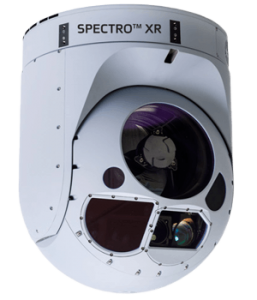

Multi-spectral electro-optical payload
ISTAR system delivering 20" payload performance in a 15" category payload.
SPECTRO XR features a 7" multi-spectral aperture (twice the average diameter for this category) and a multi-spectral imaging spotter telescope that combines multiple optical channels (VIS, MWIR, and SWIR) into one, providing outstanding range performance without increasing size and weight, operable day and night and in adverse weather conditions.
Superior target identification and tracking capabilities for airborne, maritime and ground platforms
SPECTRO XR is equipped with a wide range of digital imaging, high-definition sensors, advanced lasers and overlay features, including image fusion, TV tracker, geo-tracking, scanning and target acquisition, with a high level of stabilization.
- Superb DRI and boresight between the different channels
- Superior DRI ranges and SWIR channel for oblique imaging and extremely long operational ranges
- Advanced image processing
- ATR, VMD, MTI and real-time AI analytics suite
Designed based on Elbit Systems legacy in developing EO payloads, SPECTRO XR leverages in-house sensors, lasers and system technology to enable maximum performance.
Key Benefits
Key Features
- Diameter 415mm
- Height 500mm
- Weight 51kg
- Power 500W (average)
- Shared, high magnification, large aperture multi-spectral telescope: MWIR NFOV spotter channel, Daylight spotter channel, SWIR spotter channel
- MWIR zoom channel
- Daylight zoom channel
- Laser target designator rangefinder (LTDRF)
- Laser pointer
- Laser illuminator
- On-gimbal, fiber optics gyro Inertial Measurement Unit (IMU)
- Gyro-stabilized, 4-axis gimbals, line-of-sight control system (SERVO)
- Global Navigation Satellite System (GNSS) receiver
- One hand operation enabled
- Left/right hand operation enabled
- Versatile configuration
- Pre-defined presets
- Optional- back light
- SWaP-optimized rugged supercomputer
- Ultra-small form factor – 170 x 80 x 165mm [67 x 31 x 65"], < 2kg [4.4 lbs]
- NVIDIA® Jetson™ Xavier System on module
- SDI (SD/HD) 8 channels available simultaneously
- Low power consumption
